Drain Optional Fuel/Water Separator (If Equipped)

RXA0141829
RXA0141829-UN-30MAY14

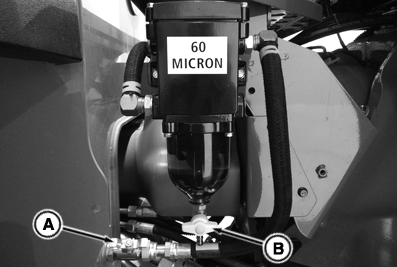

Fuel/Water Separator

A - Fuel Shut-Off Valve

B - Drain Valve

  1. Shut off engine.

  2. Close fuel shut-off valve (A).

  3. Open drain valve (B) to release any water from fuel water separator.

  4. Close drain valve and reopen fuel shut-off valve.

SV81855,00001C7-19-20140721
