Replace Front HID/LED Light Assembly

  1. RXA0142550

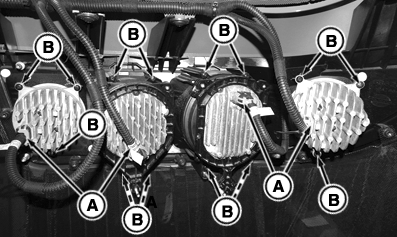

    RXA0142550-UN-16JUN14

    Right-Hand Side Shown

    A - Harness Connector

    B - Screws

    C - Light Assembly

    Raise hood.


  2. Disconnect harness connector (A).

  3. Remove screws (B) and light assembly (C).

  4. Replace light assembly.

  5. Install new light assembly in reverse order of removal.

  6. Close and secure hood.

SV81855,00001FA-19-20140616
