Replace Front Grille Halogen Light Bulbs

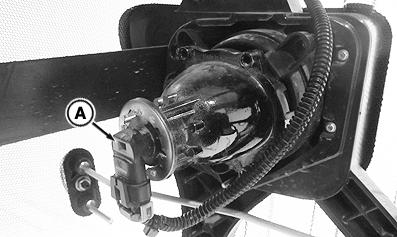

  1. RXA0134246
    RXA0134246-UN-31JUL13

    Right-Hand Side Shown

    RXA0134247
    RXA0134247-UN-31JUL13

    Right-Hand Side Shown

    A - Halogen Headlight

    B - Retaining Tab

    C - Light Bulb Assembly

    Raise hood.


  2. Rotate halogen headlight (A) counterclockwise 1/4 turn and remove.

  3. Disconnect wiring harness plug by lifting retaining tab (B).

  4. Replace light bulb assembly (C).

  5. Install new light bulb in reverse order of removal.

SV81855,00001FB-19-20140303
