Adjust Front Grille Lights

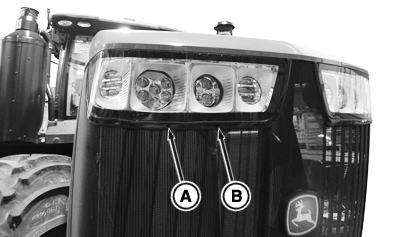

RXA0142137-UN-05JUN14

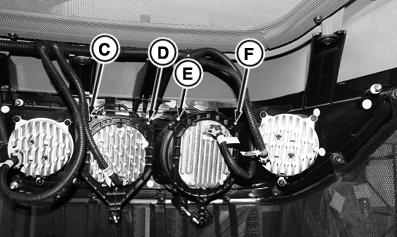

RXA0142138-UN-05JUN14

A - Low Beam Lowering Adjustment Screw

B - High Beam Lowering Adjustment Screw

C - High Beam Tilt Up And Out Adjustment Screw

D - High Beam Tilt Up And In Adjustment Screw

E - Low Beam Tilt Up and Out Adjustment Screw

F - Low Beam Tilt Up and In Adjustment Screw

To adjust front grille lights:

For Low Beam Headlights:

1. To lower low beam aim, turn low beam adjustment screw (A) clockwise.

   To raise and tilt out low beam headlights, turn low beam adjustment screw (E) clockwise.

   To raise and tilt in low beam headlights, turn low beam adjustment screw (F) clockwise.

   For High Beam Headlights:

2. To lower high beam aim, turn high beam adjustment screw (B) clockwise.

   To raise and tilt out high beam, turn high beam adjustment screw (C) clockwise.

   To raise and tilt in high beam, turn high beam adjustment screw (D) clockwise.

3. Repeat for opposite side of tractor.
