Replace Front, Side And Rear Cab Roof Light Assembly

1. Push down light fixture latch tab (A). Remove fixture.

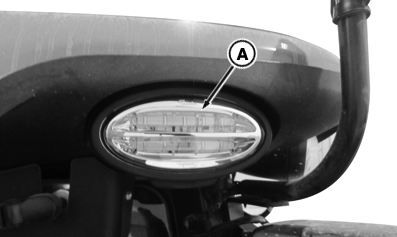

   RXA0134250-UN-31JUL13

   Push Down On Tab To Remove Fixture

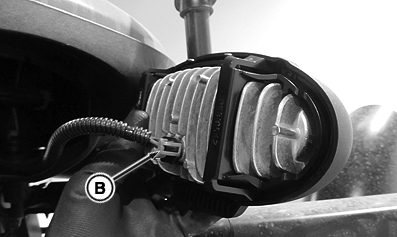

   RXA0134251-UN-31JUL13

   Remove Bulb

   A - Light Fixture Tab

   B - Harness Connector

---




2. Disconnect harness connector (B) and replace light assembly.

3. Connect harness connector.

4. Insert fixture into cab roof until it seats and tab snaps into place.
