Replace Brake or Turn Signal Light Bulb

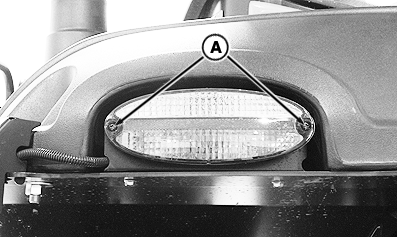

RXA0137101-UN-19NOV13

Remove Light Assembly

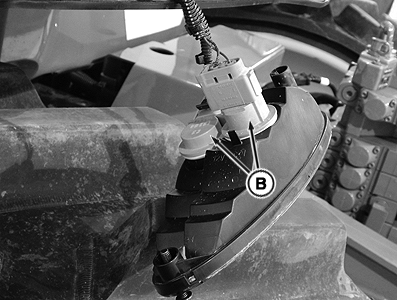

RXA0137102-UN-19NOV13

Remove Light Bulb

A - Screws

B - Light Bulb

1. Remove screws (A) and take out light assembly.

2. Turn bulb (B) counterclockwise 1/4 turn and pull out to remove.

3. Install new bulb in fixture and turn 1/4 turn clockwise.

4. Reinstall assembly and screws.
