Replace Courtesy Light Bulb

  1. RXA0143154
    RXA0143154-UN-08JUL14

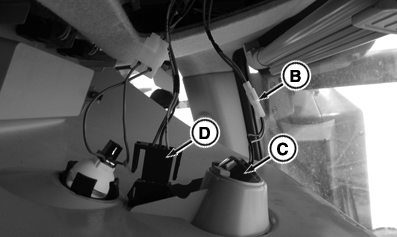

    Carefully Pull Out Cover

    RXA0143150
    RXA0143150-UN-08JUL14

    RXA0143152
    RXA0143152-UN-08JUL14

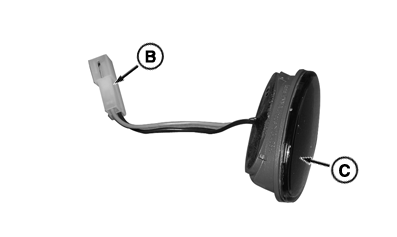

    Remove Bulb From Retaining Ring

    A - Cover

    B - Courtesy Light Connector

    C - Courtesy Bulb

    D - Plug

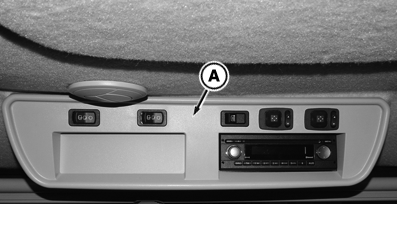

    Carefully pull out cover (A) to access bulbs.


  2. Disconnect plug (D) and courtesy light connector (B). Cover with bulb assembly is now free from cab roof.

  3. Remove courtesy light bulb (C) from cover.

  4. Install new bulb in cover.

  5. Slide rear clips into roof.

  6. Reconnect connector (B) and plug (D), then reinstall cover.

SV81855,0000201-19-20140708
