Replace Map Light Bulb

1.
   RXA0143154-UN-08JUL14

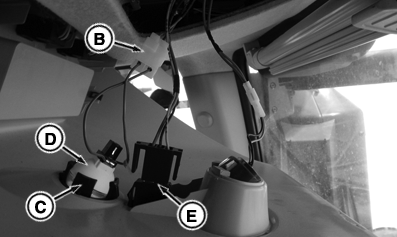

   Carefully Pull Cover Out


   RXA0143151-UN-08JUL14


   RXA0143153-UN-08JUL14

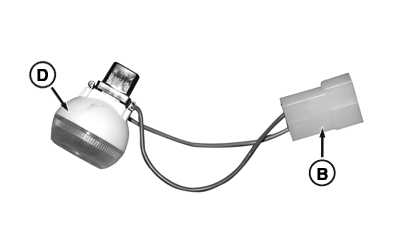

   Remove Bulb From Retaining Ring

   A - Cover

   B - Map Light Connector

   C - Retaining Ring

   D - Map Light Bulb

   E - Plug

   Carefully pull out cover (A) to access bulbs.

---




2. Disconnect plug (E) and map light connector (B). Cover with bulb assembly is now free from cab roof.

3. Remove bulb (D) from retaining ring (C).

4. Install new bulb in retaining ring.

5. Snap retaining ring with bulb into cover.

6. Reconnect connector(B) and plug (E), then reinstall cover.
