Tighten Wheel and Wheel Weight Bolts

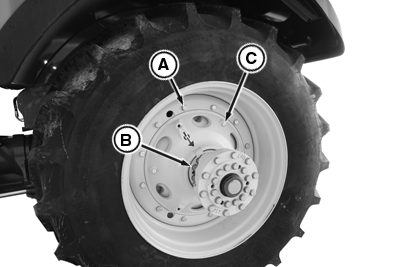

RXA0141936-UN-02JUN14

A - Rim to Wheel Bolts

B - Hub Bolts

C - Weight Bolts

CAUTION: Avoid the possibility of personal injury. Never operate tractor with loose wheel or wheel weight bolts. Failure to follow torquing procedure may result in personal injury. Wheel and wheel weight bolts are critical and require repeated torquing to assure secure tightness.

IMPORTANT: Failure to follow correct tightening procedure could result in equipment damage.

Retighten wheel and weight bolts after working 3 HOURS, 10 HOURS and DAILY during the first week of operation.

Check and torque all wheel and weight bolts on a regular or 500 Hour interval. See Wheels, Tires and Treads Section for bolt tightening procedure.

Tighten front and rear wheel bolts (A), hub bolts (B) and wheel weight bolts (C) .
