Inspect Air Intake System—9.0 L Final Tier 4 and Stage IV Engine

RXA0140513-UN-29MAY14

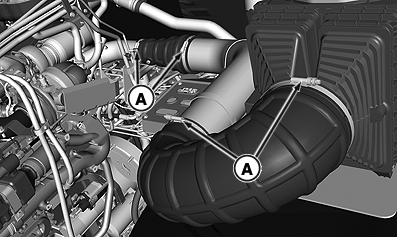

Air Intake System - Left Side

RXA0141741-UN-29MAY14

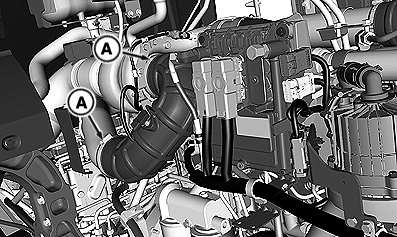

Air Intake System - Right Side

A - Air Intake Clamps

IMPORTANT: Operating engine with loose air intake clamps may allow dust entry into system and damage to engine.

NOTE: Not all air intake clamps are shown, but all need to be checked and tightened.

Check air intake system for loose clamps (A) or cap screws.

Tighten air intake system clamps to specification.

Item	Measurement	Specification
Air Intake Clamps (A)	Torque	8 N·m (71 lb·in)
