Inspect Air Intake System—13.5 L Final Tier 4 and Stage IV Engine

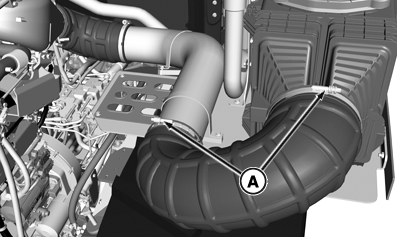

RXA0141744-UN-29MAY14

Air Intake System - Left Side

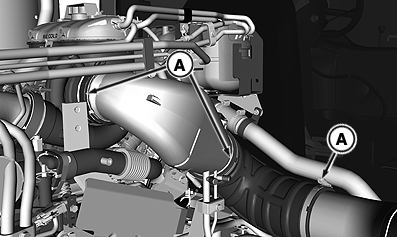

RXA0141745-UN-29MAY14

Air Intake System - Right Side

A - Air Intake Clamps

IMPORTANT: Operating engine with loose air intake clamps may allow dust entry into system and damage to engine.

NOTE: Not all air intake clamps are shown, but all need to be checked and tightened.

Check air intake system for loose clamps (A) or cap screws.

Tighten air intake system clamps to specification.

Item	Measurement	Specification
Air Intake Clamps (A)	Torque	8 N·m (70 lb·in)
