Inspect Air Intake System—13.5 L Tier 2 and Stage II Engine

RXA0141746-UN-29MAY14

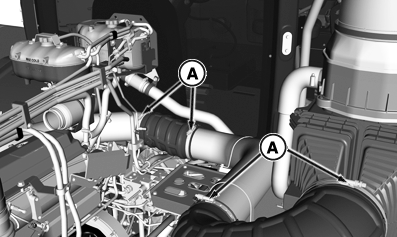

Air Intake System - Left Side

RXA0141747-UN-29MAY14

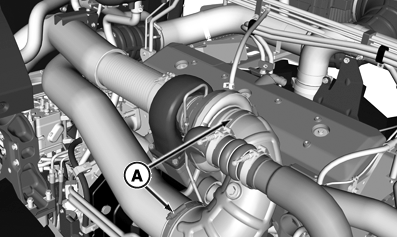

Air Intake System - Right Side

A - Air Intake Clamps

IMPORTANT: Operating engine with loose air intake clamps may allow dust entry into system and damage to engine.

NOTE: Not all air intake clamps are shown, but all need to be checked and tightened.

Check air intake system for loose clamps (A) or cap screws.

Tighten air intake system clamps to specification.

Item	Measurement	Specification
Air Intake Clamps (A)	Torque	8 N·m (70 lb-in)
