CommandARM™ Control Functions

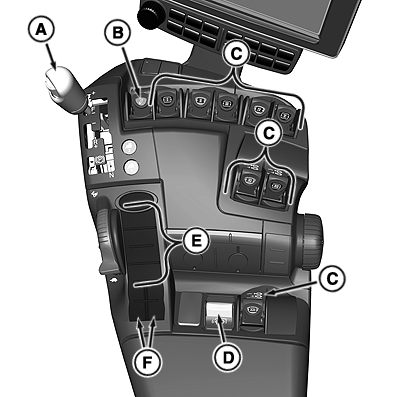

RXA0142346-UN-17JUN14
CommandARM™ Controls
Intelligent Total Equipment Control, (iTEC™), allows multiple reoccurring tasks to be performed with touch of one button.For example, one sequence made up of series of functions, operations, and distances used at start of field and second sequence used at water way in center of field. Each sequence can include up to 20 functions. Sequences remain in memory until deleted or overwritten, even if electrical current is switched off.
A sequence is a course of events from start of first function to completion of last function that the operator can start by pressing an iTEC™ button.
|
iTEC™ Functionality |
||
|---|---|---|
|
Item |
Function(s) |
|
|
A |
Transmission |
Upshift or downshift in Forward Gear |
|
B |
Rear Hitch (If Equipped) |
Raise Detent and Lower Detent, and Fast Lower |
|
C |
SCVs (CommandARM™) |
Extend, Retract, Float, and Cancel |
|
D |
Rear PTO (If Equipped) |
On/Off |
|
E |
iTEC ™ Buttons |
1/2/3/4 |
|
F |
Differential Lock |
On/Off/Auto |
iTEC™ pages are accessed through CommandCenter™ .
|
CommandARM is a trademark of Deere & Company iTEC is a trademark of Deere & Company CommandCenter is a trademark of Deere & Company |
