Set Up A Sequence

RXA0130056-UN-13DEC12

Manage Sequences → Sequences Tab → Program Sequence Button → Add Step Button

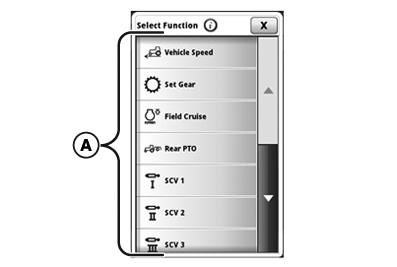

RXA0142724-UN-17JUN14

Select Function Page

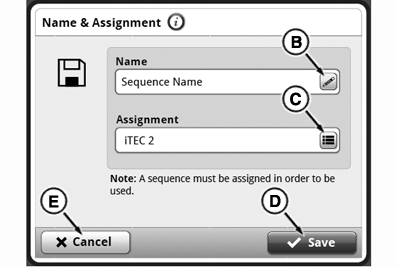

RXA0131165-UN-28FEB13

Name & Assignments Page

A - Function List

B - Edit Sequence Name Button

C - Edit Sequence Assignment Button

D - Save Button

E - Cancel Button

NOTE: For complete list of functions available, see Description and Display in this section of this Operators Manual.

From iTEC™ main page, follow guidelines listed below:

1. Select Manage Sequences button.
2. Select Sequences tab.
3. Select Program Sequence button.
4. Select Add Step button. NOTE: Operator may select Cancel button (E) to exit editing process without saving changes.

5. Select Function page appears. Select a function from list (A).
6. Select Action page appears. Select an appropriate action.
7. Step Distance page appears. Use keypad to input distance from step to take place.
8. Select OK button to complete and access next page.
9. Repeat steps 4-8 until entire sequence is set up.
10. Press Next button to access next page.
11. Name Sequence page appears.
12. Select Edit Sequence Name button (B). Keyboard appears to type name of sequence. Select Save button when complete.
13. Select Edit Assignment button (C). List of available assignments appears. Select assignment and press Save button on sequence assignment page.
14. Select Save button (D) to complete process.
