Replace Radiator Pressure Cap—15 L Engine

RXA0143144-UN-02JUL14

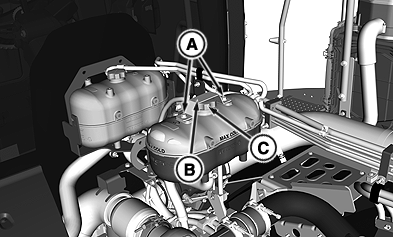

Radiator Pressure Cap

A - Cap Screws (2 used)

B - Bracket

C - Radiator Pressure Cap

1. Raise hood.

2. Remove cap screws (A) and bracket (B) from over cap.

3. Remove radiator pressure cap (C)

4. Replace with new radiator pressure cap.

5. Reinstall bracket and tighten cap screws to specification.

   Item	Measurement	Specification
   Radiator Pressure Cap Bracket Cap Screws	Torque	20 N·m (15 lb·ft)

6. Close hood.
