Jack Up the Tractor - Lifting Points and Support Stand Placement (2010-52-EU)

CAUTION: Use approved lifting equipment only.

Install oscillation stop (B) to prevent oscillation during axle removal. Failure to do so may result in injury.

Jack up tractor on firm, level ground only.

Before working on tractor, secure it using suitable support stands. Support stands are available from your John Deere™ dealer.

Illustrations show recommended lifting points for jacking up tractor. Use appropriate and suitable lifting device.

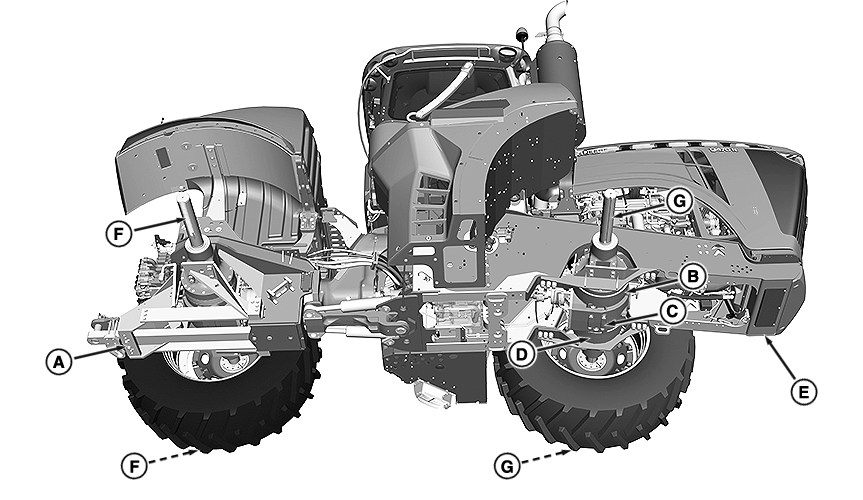

RXA0153764-UN-01SEP16

Underside, Lifting Points

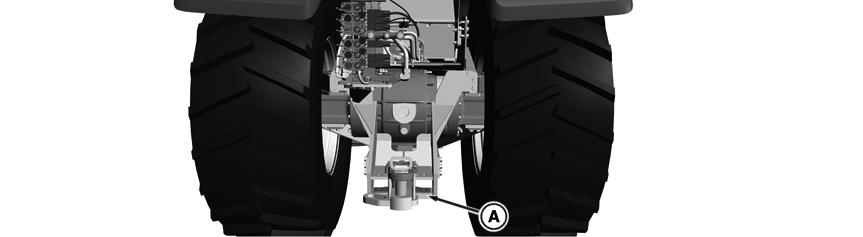

RXA0138239-UN-13JAN14

Rear Drawbar

A- Raise Rear of Tractor, e.g. to Remove Rear Wheel.	B- Raise Right Side of Front Differential, e.g. to Remove Right Front Wheel.	C- Raise Center of Front Differential Housing.	D- Raise Left End of Front Axle, e.g. to Remove Left Front Wheel.
E- Raise Front End of Tractor.	F- Rear Axle Support Stand Placement.	G- Front Axle Support Stand Placement.

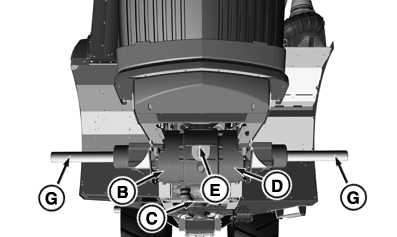

RXA0138240-UN-13JAN14

Jack up the Front End of Tractor

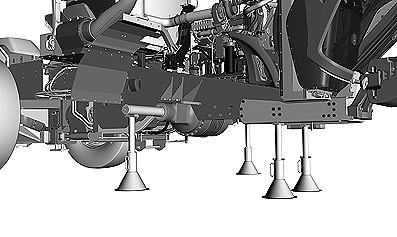

RXA0101151-UN-27MAR09

JT07211 Support Stands

RXA0147886-UN-23APR15

B - Raise Right End of Front Differential, e.g. to Remove Right Front Wheel

C - Raise Center of Front Differential Housing.

D - Raise Left Side of Front Differential, e.g. to Remove Left Front Wheel

E - Raise Front End of Tractor under the Basic Weight

R - JT05725 Universal Support Stand

G - JDG660B Gudgeon Oscillation Stop

H - JT07211 Support Stands
