Service Optional Fuel Water Separator Filter Element (If Equipped)

RXA0148087-UN-24APR15

RXA0084320-UN-26SEP05

Water Separator Lid

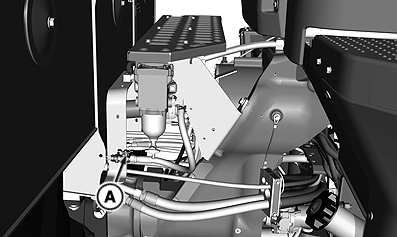

A - Fuel Shut-Off Valve

IMPORTANT: Clean filter element after each fifth back flushing of water separator assembly. Filter element can be cleaned as often as necessary for an indefinite number of times. Replace element if damaged or if cleaning becomes impossible.

1. Shut off engine.

2. Close fuel shut-off valve (A).

3. NOTE: Drain fuel into appropriate container and dispose of it in accordance with local laws and ordinances.

   Open drain valve and drain fuel from bowl.

4. Loosen lid cap screws evenly in sequence shown.

5.
   RXA0084322-UN-26SEP05


   RXA0084324-UN-26SEP05


   RXA0084320-UN-26SEP05

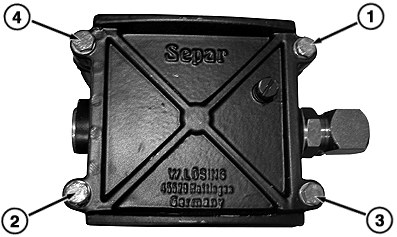

   Lid Cap Screw Tightening Sequence

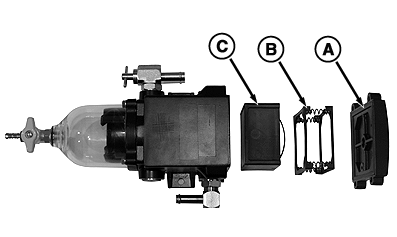

   A - Lid

   B - Spring Cassette

   C - Filter Element

   D - Lid Gasket

   Remove lid (A), spring cassette (B). Lift filter element (C) from housing using attached handle.

---




6. Wash filter element in clean diesel fuel or mineral spirits.

7. Carefully inspect filter element for damage. If damaged, or if filter cannot be cleaned, replace filter element.

8. Install cleaned or new filter element and spring cassette.

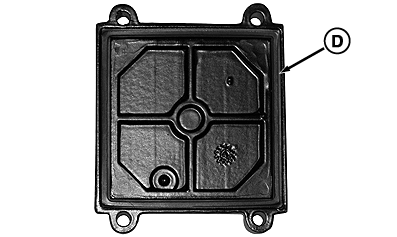

9. Inspect lid gasket (D) condition and replace if necessary.

10. Install lid (A). Tighten cap screws in sequence shown.

11. Open fuel shut-off valve.

12. Start and run engine at high idle for at least 2 minutes. If engine will not start or starts and dies, see Replace Fuel Filters in this section of this Operator’s Manual.

13. Shut off engine and check for fuel leaks.
