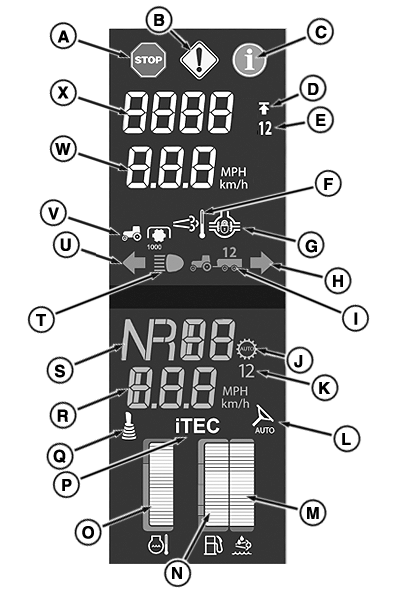

Corner Post Display

RXA0142560-UN-13JUN14

Corner Post Display

A - Stop Indicator

B - Service Alert Indicator

C - Information Indicator

D - Maximum Set Speed Indicator

E - Maximum Set Speed Selection (1 or 2)

F - Exhaust Filter Cleaning Indicator

G - Differential Lock Indicator

H - Right Turn Indicator

I - Trailer Indicator (If Equipped)

J - Efficiency Manager Indicator

K - Efficiency Manager Set Speed Indicator

L - AutoTrac™ Indicator

M - Diesel Exhaust Fluid (DEF) Gauge (FT4/Stage IV Engines Only)

N - Fuel Gauge

O - Coolant Temperature Gauge

P - iTEC™ Indicator

Q - ISOBUS Auxillary Mode Indicator

R - Set Speed

S - Current Gear/Range

T - High Beam Indicator

U - Left Turn Indicator

V - PTO Indicator (If Equipped)

W - Vehicle Ground Speed

X - Tachometer
