Digital Indicators—Tachometer, Ground Speed and Transmission

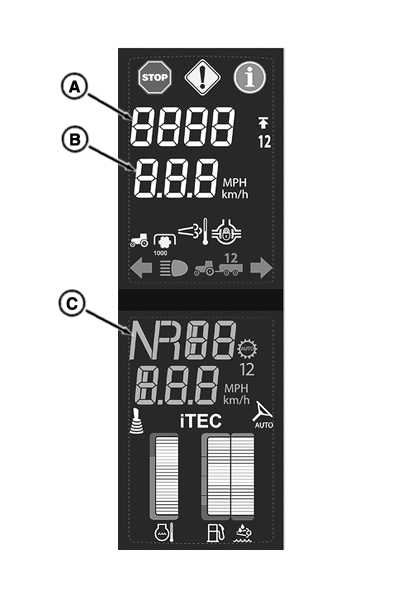

RXA0140656-UN-25MAR14

A - Tachometer

B - Ground Speed Indicator

C - Transmission Information

A—Tachometer: Displays engine speed in multiples of 10. If ”- - -” is displayed, no speed signal is being received.

B—Ground Speed Indicator: Displays ground speed in either miles-per-hour or kilometers-per-hour, depending on operator selected units (U.S. or Metric).

If ”- - -” is displayed, no speed signal is being received.

C—Transmission Information: Shows if transmission is in Neutral—N, Forward—F, Reverse—R or Park—P.

If ”- - -” is displayed, no gear signal is being received.

Efficiency Manager™: Shows set speeds 1 or 2.

PST Only: Shows gear selected.
