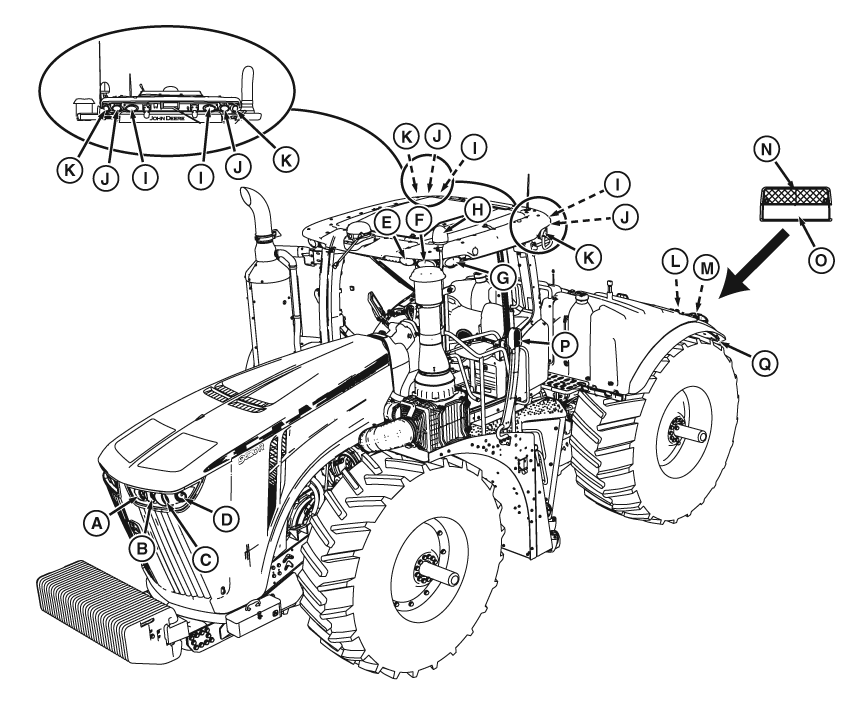

Light Identification

RXA0153368-UN-22AUG16

A - Inner Hood Lights

B - Low Beam Hood Lights

C - High Beam Hood Lights

D - Outer Hood Lights

E - Front Inner Roof Lights

F - Front Outer Roof Indicator Lights

G - Front Side Roof Lights

H - Rotary Beacon Lights (If Equipped)

I - Rear Inner Roof Lights

J - Rear Outer Roof Indicator Lights

K - Rear Side Roof Lights

L - Rear Inner Fender Lights

M - Rear Outer Fender Lights

N - Amber Indicator Lights

O - Red Lens

P - Extremity Indicator Lights

Q - Rear Fender Tail/Brake/Indicator Lights

All lights are same on both sides of tractor, except rotary beacon (H) in Deluxe and Premium lighting packages and grill mounted center work lights (A) in Premium lighting package. In Premium lighting package, right grill mounted center work light is Halogen or LED (depending on option).
