Premium Radio XM Home Page

RXA0132502-UN-28JUN13

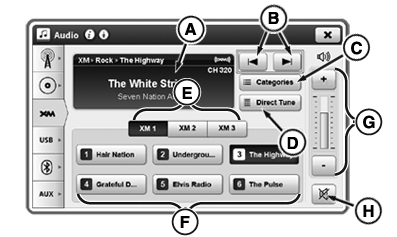

XM Home Page

NOTE: Refer to Select Radio Source with Generation 4 CommandCenter™ in this section of this Operator’s Manual, to learn how to navigate to XM home page.

A—Display Area: Displays XM activity/information.

B—Next/Previous Station: Select to seek next available station before or after current station.

C—(CAT) Category Mode: Select to launch category search mode. Scroll up or down through categories and select station within category.

D—Direct Tune: Select to enter desired channel with keypad.

E—XM Channel Bank: Toggle through banks using buttons (XM1, XM2, XM3).

F—Presets: Six presets can be programmed per bank. To set, press and hold desired preset for at least three seconds.

G—Volume Adjustment: Adjust volume.

H—Mute: Silence sound.
