Premium Radio USB Home Page

RXA0132516-UN-28JUN13

USB Home Page

NOTE: Refer to Select Radio Source with Generation 4 CommandCenter™ in this section of this Operator’s Manual, to learn how to navigate to USB home page.

Connect USB using USB input, located on right-hand console/storage tray, to play stored music. For more information, refer to External Sources (Premium Radio) page in the section of this Operator’s Manual.

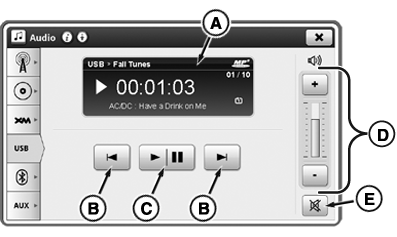

A—Display Area: Displays current USB activity/information.

B—Next/Previous Track: Select to skip back to beginning of current track or ahead to beginning of next track. Press previous button twice to skip to previous track.

C—Play/Pause: Play or pause track.

D—Volume Controls: Adjust volume.

E—Mute: Silence sound.
