Phone Operation

RXA0133719-UN-16JUL13

Phone Shortcut Button on Navigation Bar

RXA0147930-UN-13APR15

Menu → Machine Settings Tab → Phone Icon

RXA0137742-UN-11DEC13

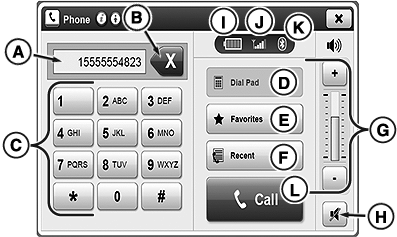

Phone Home Page

RXA0147774-UN-30MAR15

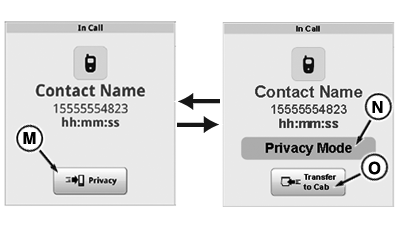

Privacy Mode

Use Bluetooth® capability to make or receive phone calls from paired Bluetooth® enabled cell phone. For more information on how to pair Bluetooth® enabled device see Pair Bluetooth® Device—Generation 4 CommandCenter™ in this section of this Operator’s Manual.

Press Phone Shortcut button on Navigation Bar or follow alternative path:

1. Select Menu.
2. Select Machine Settings tab.
3. Select Phone icon.

NOTE: Phone options A, B, C and E are not available during call. Use cell phone if another number is needed.

Phone controls on this page are disabled while device is syncing with radio.

A—Input Box: Displays typed digits.

B—Backspace Button: Cancel typed digit. Press and hold to cancel multiple digits.

C—Dial Pad: Enter phone number using number buttons.

D—Dial Pad Tab: Press to display dial pad during phone call.

NOTE: Favorites are stored permanently and can be viewed by any operator. Clear favorites before leaving tractor, if necessary. For more information, see Clear Favorites and Call History is this section of this Operator’s Manual.

E—Favorites Button: View/edit favorites contacts.

F—Recent Button: Review previous missed calls, incoming calls or outgoing calls.

G—Volume Control: Adjust volume.

H—Mute Button: Mutes microphone.

I—Battery Icon: Displays battery life.

J—Signal Icon: Displays current phone signal strength.

K—Bluetooth® Icon: If blue, Bluetooth® device is connected. If grayed out, Bluetooth® device is not connected.

L—Call Button: After dialing or selecting number, press to begin call.

M—Privacy Mode Button: Transfers phone audio from cab speakers to phone speakers during call.

N—Privacy Mode Message: Displays when call has entered privacy mode.

O—Transfer to Cab Button: Exits privacy mode and transfers phone audio from phone speakers to cab speakers
