Configurable Lights

RXA0133717-UN-16JUL13

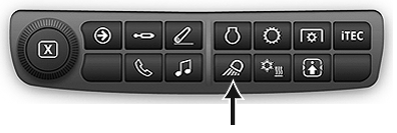

Lights Shortcut Button on Navigation Bar

RXA0137115-UN-05DEC13

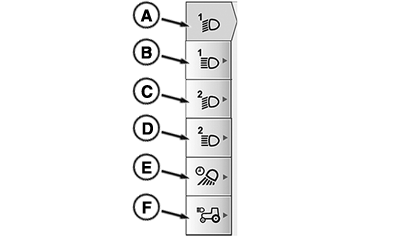

Lights Page Selection Tabs

RXA0137114-UN-05DEC13

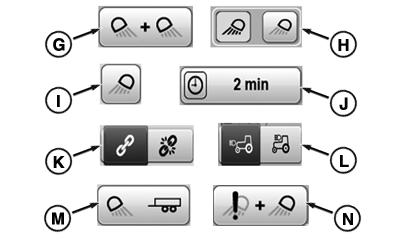

CommandCenter™ Light Controls

A - Field 1 Low Beam

B - Field 1 High Beam

C - Field 2 Low Beam

D - Field 2 High Beam

E - Exit Lighting

F - Hood/Belt Line Light (If Equipped)

G - Linked Lights

H - Unlinked Lights

I - Paired Lights

J - Exit Light Timeout

K - Link/Unlink

L - Hood/Loader Road Light Toggle

M - Implement Lights

N - Light with Fault

CAUTION: Avoid injury or death caused by collision with another vehicle. Follow local laws and regulations for equipment lighting and marking. Comply with all traffic regulations.

Dim road lights to low-beam for oncoming vehicles. Avoid using field lights on public roadways or highways which could temporarily blind or confuse other drivers. Promptly replace or repair damaged or lost lighting devices. See your John Deere™ dealer.

To access Lights page, press Lights Shortcut Button on Navigation Bar.

When page is displayed, operator can select left side tabs (A-F).

NOTE: Page temporarily shows when selector knob transitions from OFF position to the road lights or field lights position.

Configure lights with these buttons:

Linked Lights (G) - Lights linked or paired together that can be unlinked.
Unlinked Lights (H) - Unlinked light pair that can be linked.
Paired Lights (I) - Light pair that is always linked.
Exit Light Timeout (J) - Press to select how long selected lights remain on after light selector knob is turned to off position.
Link/Unlink (K) - Press to link and unlink lights on all pages.
Toggle Hood/Loader Road Light (L) - Press to toggle road lights between hood and loader lights position. Feature is only available when light knob is in road mode and tractor is equipped with hood/belt line lights.
Implement Lights (M) - Press to activate implement lights. Implement light button only available if there are no fender work lights. If there are fender work lights, fender work lights button control implement lights.
Light with Fault (N) - Exclamation point indicates that a light is in error. (for example: light bulb is burnt out.)
