Operate Front Windshield Wiper and Washer

RXA0142299-UN-09JUN14

RXA0142303-UN-09JUN14

Windshield Washer Reservoir

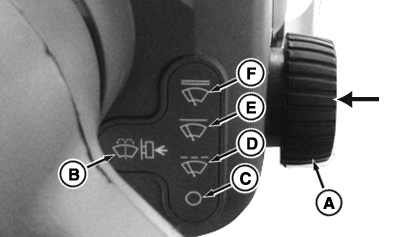

A - Windshield Wiper/Washer Knob

B - Washer Icon

C - Off

D - Intermittent Speed

E - Slow Speed

F - Fast Speed

G - Windshield Washer Reservoir

Wiper/washer knob (A) has four positions:

• OFF
• Intermittent Operation
• Slow Speed
• Fast Speed

Push knob in to operate front windshield washer.

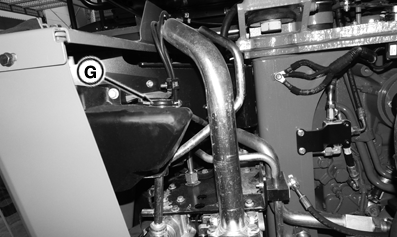

Windshield washer reservoir (G) is on left-hand side of the gudgeon, above the hydraulic filters.

Fill reservoir with non-freezing windshield washer fluid.
