Configure Tractor for GPS/Radar

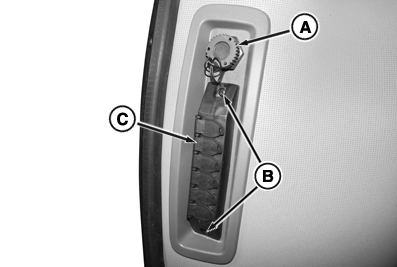

RXA0140811-UN-31MAR14

Remove Auxiliary Power Strip

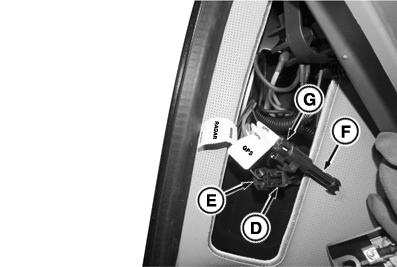

RXA0140812-UN-31MAR14

Radar and GPS Connectors

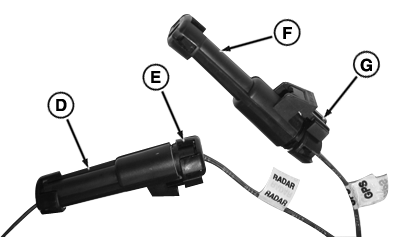

RXA0140813-UN-31MAR14

Connectors For Radar and GPS

A - Diagnostic Connector Cap and Nut

B - Screws

C - Auxiliary Power Strip

D - Tractor Harness Connector

E - Radar Connector

F - Dust Cap

G - GPS Connector

Tractor comes from factory configured to use radar as ground speed input. To reconfigure tractor to use GPS as the true ground speed input:

1. Remove diagnostic connector cap (A) and retaining nut.

2. Remove retaining screws (B) and remove auxiliary power strip (C) (if equipped) with cover plate.

3. Inside right-hand console locate one wire lead marked Radar and one marked GPS.

4. On tractors equipped with radar, disconnect tractor harness connector (D) from radar connector (E). Then, proceed to step 6.

5. On tractors not equipped with radar, locate wire lead marked GPS and proceed to step 6.

6. Remove dust cap (F) from GPS connector (G).

7. Attach GPS connector to tractor harness connector.

8. Install (or leave installed) dust cap on radar connector

9. Reinstall auxiliary power strip with cover plate.

10. Reinstall diagnostic connector through cover, install cap tether and tighten nut.

11. Reinstall power strip cover retaining screws and attach diagnostic connector cap.

To connect from GPS to radar input, disconnect GPS connector and reconnect radar connector. For information on how to perform radar calibration, refer to Maintenance & Calibrations in CommandCenter™ section of this Operator’s Manual.
