Mount StarFire™ Receiver

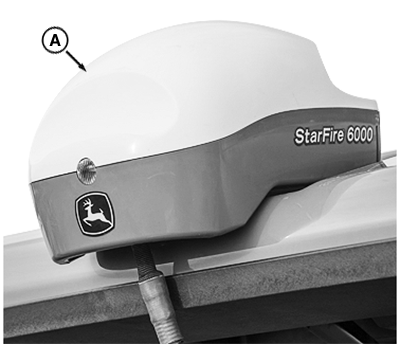

RXA0153451-UN-18AUG16

StarFire™ Receiver Mounted on StarFire™ Receiver Bracket

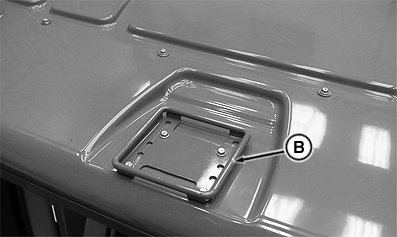

RXA0107027-UN-31MAR10

StarFire™ Receiver Bracket

A - StarFire™ Receiver

B - StarFire™ Receiver Bracket

CAUTION: Handle global positioning receivers and brackets safely. Falling while installing or removing a global positioning receiver can cause serious injury. Use a ladder or platform to easily reach a mounting location.

Use sturdy and secure footholds and hand holds. Do not install or remove the receiver in wet or icy conditions.

Mount StarFire™ receiver (A) on StarFire™ receiver bracket (B).

NOTE: Refer to your John Deere™ dealer or to StarFire™ receiver installations instructions for compatibility.

See your John Deere™ dealer for compatible adapter harnesses.
