Adjust CommandARM™ Position

RXA0137805-UN-08JAN14

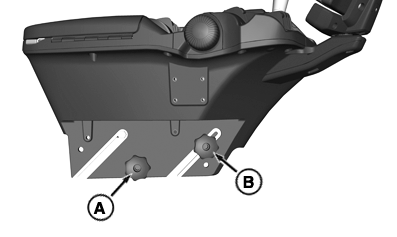

CommandARM™ Adjustment Knobs

A - CommandARM™ Height Adjustment Knob

B - CommandARM™ Tilt and Height Adjustment Knob

1. Turn CommandARM™ Height Adjustment Knob (A) and CommandArm™ Tilt and Height Adjustment Knob (B).

   NOTE: Both CommandARM™ Adjustment Knobs (A and B) must be loosened to adjust height of CommandARM™.

2. By turning both knobs, CommandARM™ can slide at an angle to desired position.

3. Once proper position is maintained, turn CommandARM™ Height Adjustment Knob to original position to lock.

4. Turn CommandARM™ Tilt Adjustment Knob (B) to adjust the angle of CommandARM™.

5. Once proper angle is maintained, turn CommandARM™ Tilt Adjustment Knob to original position to lock.
