HVAC Settings—Generation 4 CommandCenter™

RXA0133716-UN-16JUL13

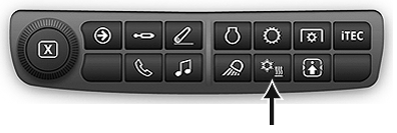

HVAC Shortcut Button on Navigation Bar

RXA0147936-UN-13APR15

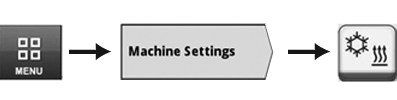

Menu → Machine Settings Tab → HVAC Icon

RXA0133683-UN-19JUL13

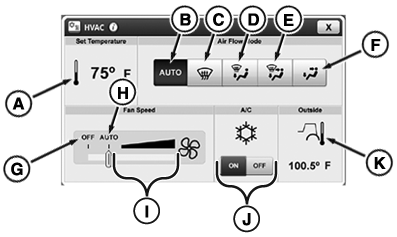

HVAC Page

RXA0133684-UN-19JUL13

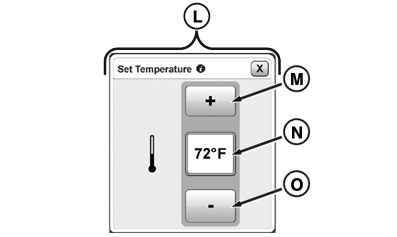

Set Temperature Page

To access the main page, use HVAC Shortcut Button on Navigation Bar or follow alternative path:

1. Select Menu.
2. Select Machine Settings tab.
3. Select HVAC (Heating, Ventilation, and Air Conditioning) icon.

A—Set Temperature Module: Select to access Set Temperature page (L).
B—Auto Air Flow Toggle: Select for air flow to be automatically adjusted.
C—Defrost Toggle: Select to activate defrost.
D—Defrost and Floor Toggle: Select to activate defrost and floor vents.
E—Defrost, Floor and Cab Toggle: Select to activate defrost, floor, and cab vents.
F—Cab and Floor Toggle: Select to activate floor and cab vents.
G—Fan OFF: Move slide bar to OFF position to turn fan off.
H—Fan AUTO: Adjust slide bar to AUTO position to have fan speed automatically adjust to maintain set temperature.
I—Fan Increment Bar: Use to adjust fan speed. As slide moves right, fan speed increases. As slide moves left, fan speed decreases.

IMPORTANT: If system is not cooling properly, turn air conditioning switch off to avoid possible compressor damage.

J—A/C Toggle: Use to turn A/C ON or OFF.
K—Outside Temperature Module: Displays the temperature outside of the cab.
L—Set Temperature Page: Page used to adjust cab temperature.
M—Increase Button: Select to increase temperature in cab.
N—Display Temperature Box: Displays the temperature setting.
O—Decrease Button: Select to decrease temperature in cab.
