Backup Alarm

RXA0142551-UN-13JUN14

Transmission Shift Lever

RXA0141854-UN-02JUN14

Backup Alarm

RXA0141855-UN-02JUN14

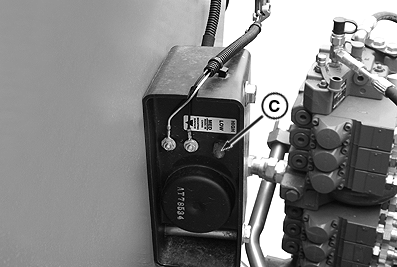

Volume Control (Rear View)

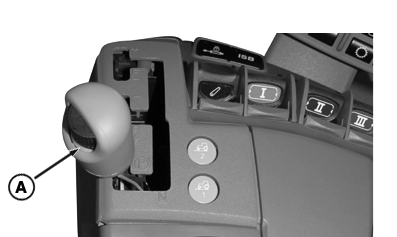

A - Transmission Shift Lever

B - Backup Alarm

C - Volume Control Knob

CAUTION: Backup alarm emits an audible sound to alert anyone near by. Tractor will be traveling in a reverse direction.

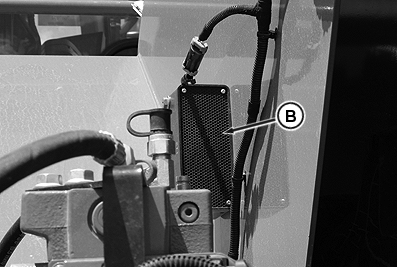

NOTE: Backup alarm (B) is located on rear cross member.

Backup alarm will sound when key switch is ON and transmission shift lever (A) is in reverse gear.

Alarm can be set at three different volume levels:

• High
• Low
• Medium

Turn volume control knob (C), on back of alarm, to desired setting.

Turn Backup Alarm ON/OFF

RXA0133712-UN-16JUL13

Transmission Shortcut Button on Navigation Bar

RXA0130326-UN-11JAN13

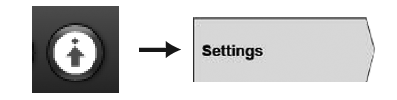

Advanced Settings Icon → Settings Tab

RXA0150551-UN-17NOV15

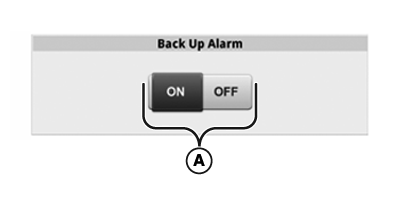

Backup Alarm ON/OFF Toggle

A - Backup Alarm ON/OFF Toggle

Use Transmission Advanced Settings to turn Backup Alarm ON or OFF.

To access the Transmission Advanced Settings page:

1. Press Transmission Shortcut Button on Navigation Bar.
2. Select Advanced Settings icon.
3. Select Settings tab.
4. Use Backup Alarm toggle (A) to turn backup alarm ON or OFF.
