Drawbar Load Limitations

IMPORTANT: Certain heavy equipment can place excessive strain on drawbar (C). Strain greatly increased by speed and rough ground. Maximum static vertical load on drawbar must not be exceeded. See Drawbar Load Limits table.

Drive slowly when moving heavy draft loads.

Tighten drawbar locking bolts (A) with shims to 435 N·m (322 lb·ft) and drive slowly, if heavier loads are expected.

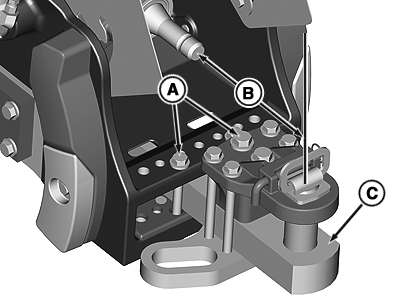

RXA0141867-UN-30MAY14

A - Bolts

B - PTO Shaft to Drawbar Pin Hole

C - Drawbar

Drawbar Load Limits Based on Drawbar Position and Length
Model	Drawbar Category and Support	End of PTO Shaft to Drawbar Pin Hole Distance (B) mm (in)	Drawbar Position	Maximum Vertical Load kg (lb)
9370R and 9470R	Cat. 41, Standard Drawbar Support	358 (14)	Front Hole in Frame (Short Position)	2470 (5450)
9370R and 9470R	Optional Cat. 41, HD Drawbar Support	508 (20)	Rear Hole in Frame (Long Position)	2470 (5450)
9370R and 9470R	Cat. 41, HD Drawbar Support, and Reinforcement Kit	358 (14)	Front Hole in Frame (Short Position)	4900 (11000)
9370R and 9470R	Optional Cat. 52, HD Drawbar Support	358 (14)	Front Hole in Frame (Short Position)	5440 (12000)
9520R, 9570R, and 9620R	Cat. 52, HD Drawbar Support	358 (14)	Front Hole in Frame (Short Position)	5440 (12000)
