Activate Tractor-Implement Automation™ Equipment

RXA0131994-UN-22APR13

Menu → Systems Tab → Software Manager Icon → Activations Tab

RXA0143147-UN-07JUL14

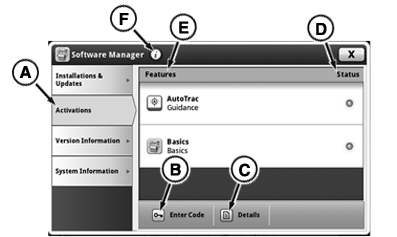

Activations Page

A - Activations Tab

B - Enter Code Button

C - Details Button

D - Status List

E - Feature List

F - Information Button

Response Codes, Text Descriptions, and Corrective Actions
Common Response Codes	Text Displayed	Corrective Action
0	Code Accepted	None Required
4	Implement Not Available to Deactivate	Implement already deactivated
5	Implement Already Activated	None Required, implement should work as expected
6 and 11	Space Unavailable for Activation	Contact your dealer for assistance
17	Demonstration Activation Replaced With Permanent Activation	None Required

NOTE: To obtain tractor serial number, see Record Product Identification Number in Identification Numbers section of this Operator’s Manual.

An activation code is required to allow TIA™ to function. Contact your John Deere™ dealer with tractor serial number and implement make, model, and serial number. Dealer obtains activation code through John Deere™ StellarSupport™.

1. Select Menu

2. Select System Tab

3. Select Software Manager Icon

4. Select Activations Tab (A)

5. When Activations page displays, press Enter Code button (B). Keyboard will appear.

   NOTE: Some Tractor Automation Activation page keyboard characters are grayed out and are not used in activation codes. If provided activation code includes any characters that are grayed out on Tractor Automation Activation page keyboard, request dealer reconfirm activation code.

6. Using keyboard, enter activation code, then select Save/Enter button.

7. If activation code is entered correctly, confirmation code appears in the enter activation overlay and message is displayed. Code Accepted indicates that activation is complete.

8. If message other than Code Accepted appears, see Response Codes, Text Descriptions, and Corrective Actions table. If message not listed appears, check and reenter code. If problem persists, contact your John Deere™ dealer.

Up to twenty implement names can be viewed on Tractor Automation Activation page at any given time. When a new entry shows up in Feature List (E), that entry is labeled “Unknown Implement”. The text “Unknown Implement” should change to a real name after first time connecting the implement.
