Category 5 Heavy Duty Drawbar Support Load Limitations

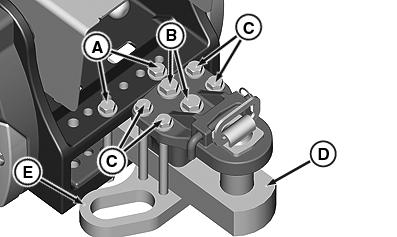

RXA0141870-UN-30MAY14

A - Cap Screws, M20

B - Cap Screws, M22

C - Cap Screws, M20

D - Drawbar

E - Drawbar Brace

IMPORTANT: Heavy duty drawbar support must be used when maximum static vertical load exceeds 2043 kg (4500 lb).

Drive slowly when moving heavy draft loads.

Maximum Static Vertical Drawbar Load kg (lb)
Short Drawbar Position	5440 (12000)
Long Drawbar Position	4082 (9000)

Attach drawbar brace (E) and hammerstrap to drawbar (D) using M22 cap screws (B) and M20 cap screws (A) and (C).

Item	Measurement	Specification
Torque Specifications
M20 Cap Screws	Torque	610 N·m (450 lb·ft)
M22 Cap Screws	Torque	750 N·m (553 lb·ft)
