Adjust Drawbar Side-to-Side Movement

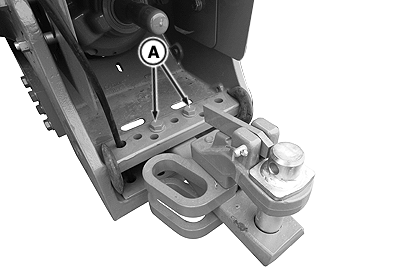

RXA0141865-UN-13JUN14

A - Locking Bolts

1. Remove drawbar locking bolts (A).

2. Slide drawbar to desired position.

3. Reinstall drawbar locking bolts.

4. Tighten drawbar locking bolts to 435 N·m (322 lb·ft).
