Install Clevis Assembly — Category 4 Drawbar

RXA0141898
RXA0141898-UN-05JUN14

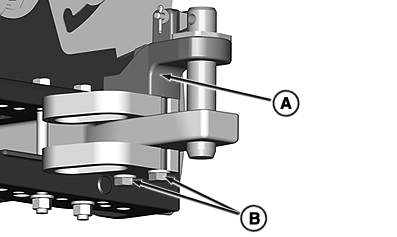

A - Clevis Assembly

B - Cap Screws

IMPORTANT: Avoid equipment damage: correctly attach clevis assembly.

  1. Attach clevis assembly on top of drawbar.

  2. Tighten two cap screws (B) to specification 750 N·m (553 lb·ft).

TO84419,0000104-19-20151104
