Clevis Assembly Use — Category 4 Drawbar

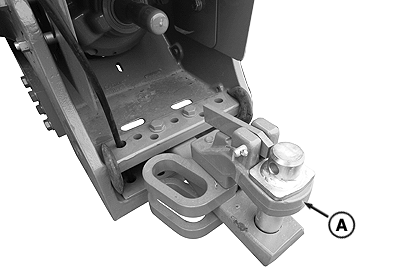

RXA0141866-UN-13JUN14

A - Clevis Assembly

IMPORTANT: When PTO shaft may cause interference, remove clevis assembly.

Clevis assembly (A) must be attached only to the top of the drawbar.

If towed implement also has a clevis assembly, insert pin only through tractor drawbar. DO NOT insert pin through all four members.
