Install Clevis Assembly — Category 5 Drawbar

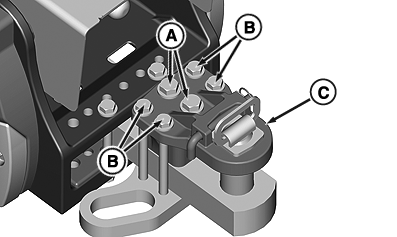

RXA0141899
RXA0141899-UN-05JUN14

A - Clevis Assembly

B - M24 Cap Screws

C - M20 Cap Screws

IMPORTANT: Avoid equipment damage: correctly attach clevis assembly.

  1. Attach clevis assembly to top of drawbar.

  2. Tighten two center M24 cap screws (B) to 750 N·m (553 lb·ft).

  3. Tighten four outer cap screws (C) to 610 N·m (450 lb·ft).
