Use Correct Drawbar Pin — Category 5 to 4

RXA0141901-UN-05JUN14

Drawbar

RXA0141902-UN-05JUN14

Hitch Link

RXA0141903-UN-05JUN14

Adapter Kit

B - Hitch Pin Diameter

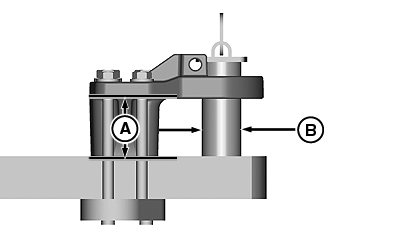

A - Drawbar Opening Height

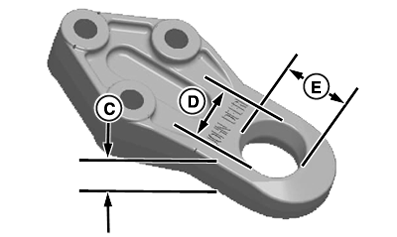

E - Slot Length

D - Slow Width

C - Link Thickness

F - Cat 5 To 4 Adapter

IMPORTANT: Use Category 5 drawbar pin for implements that produce drawbar loads requiring more than 348 kW (467 HP) engine power level rating or 300kW (400 HP) PTO power level rating for proper operation. Contact implement manufacturer for information on how to properly convert implement to accept Category 5 drawbar pin.

See your John Deere™ dealer to purchase an Adapter Kit (F) for tractors equipped with a Category 5 drawbar when attaching to implements equipped with a Category 4 hitch link if approved by implement manufacturer.

Use Category 5 drawbar pin furnished with tractor to attach implements that have a Category 5 hitch link. See table for dimensions. Consult implement Operator's Manual or manufacturer to determine proper size of drawbar pin for implement attaching system. Operating tractor and implements with drawbar category combinations which are improperly sized for implement power requirements could result in premature wear or failure of hitch components.

Hitch Link Dimensions mm (in)
Category	Tractor Drawbar		Implement Hitch Link
	Hitch Pin Diameter (B)	Drawbar Opening Height (A)	Slot Length (E)	Slot Width (D) (Minimum)	Link Thickness (C)
4	50 (1.97)	90 (3.54)	55 — 70 (2.17 — 2.75)	55 (2.17)	50 (1.97)
5	70 (2.76)	100 (3.94)	73 — 85 (2.87 — 3.35)	73 (2.87)	60 (2.36)
