Hitch Manual Lowering

RXA0142710-UN-24JUN14

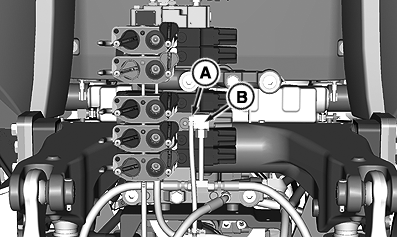

Manual Lowering Valve

A - Manual Lowering Drain Valve

B - Plastic Plug

CAUTION: Avoid personal injury or death. Do not disconnect any hitch sensors, solenoids, or connectors from hitch control valve when engine is operating or key switch is ON. Unexpected hitch movement can occur. Stay clear of hitch area when starting engine or manually lowering hitch.

Hitch manual lowering is possible when hydraulic pressure and/or electrical power is not available.

Hitch manual lowering drain valve (A) is located on lower right-hand side lift cylinder.

Remove plastic plug (B) to access valve. Turn valve counterclockwise to lower hitch.

NOTE: Hitch cannot be raised mechanically. Both hydraulic and electrical power are required to raise hitch.

Turn valve clockwise and install plug after hitch has been lowered.
