Sway Blocks

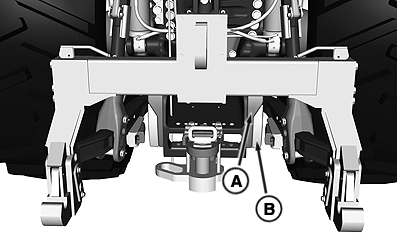

RXA0141372-UN-08MAY14

A - Tapered Side

B - Sway Blocks

Install sway blocks (A) with thick end toward frame, to minimize hitch movement.

Tighten attaching bolts to 230 N·m (170 lb·ft).

IMPORTANT: Prevent interference of draft links with tires. Be sure that distance between tires is at least 1168 mm (46 in.) with equal distance from middle of tractor. If distance between tires must be less than 1168 mm (46 in.), sway is limited. (See observing tread width limitations in Wheels, Tires, and Treads Section of this Operator’s Manual.)

Move each sway block to opposite side of tractor to allow sway when hitch is lowered. Install sway blocks with tapered sides (A) outward from frame.
