Attaching Implement to Quick Coupler

RXA0129849
RXA0129849-UN-28JAN13

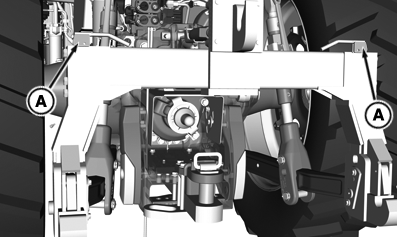

Coupler Latch Handles Up

RXA0142590
RXA0142590-UN-16JUN14

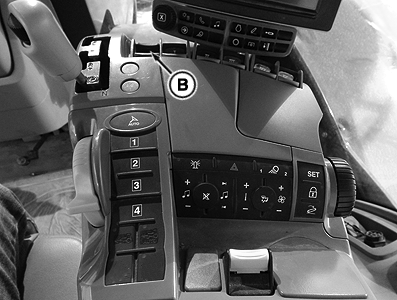

Hitch Control Lever

RXA0129850
RXA0129850-UN-28JAN13

Coupler Latch Handles Down

A - Coupler Latch Handles

B - Hitch Control Lever

CAUTION: To avoid bodily injury or machine damage:

  • Put transmission in PARK position and check full range of hitch for interference, binding, or PTO separation whenever an implement is attached.
  • Make sure implement is correctly attached. Incorrect attachment can allow implement to be pulled over tractor wheel and onto operator station.
  • Do not stand between tractor and implement.

  1. Pull up on coupler latch handles (A).

  2. Lower hitch control lever (B) until quick coupler hooks are lower than implement hitch pins.

  3. Back up tractor to implement.

  4. Raise hitch enough to engage implement pins in hooks.

  5. Push coupler latch handles (A) down to lock implement to quick coupler.

  6. Connect hydraulic hoses and electrical connections.

  7. Slowly pull hitch control lever to raise implement. Lower implement to ground and adjust upper height limit control if necessary.
