Detaching Implement From Quick Coupler

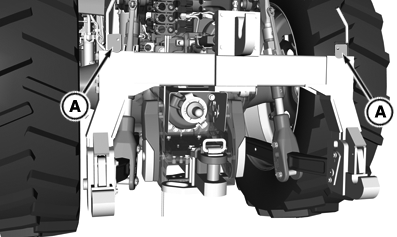

RXA0129849-UN-28JAN13

A - Coupler Latch Handle

1. Raise both latch levers (A) with implement raised.

2. Disconnect hydraulic hoses and electrical connections.

3. Lower implement to ground. Continue lowering quick coupler until hook clears implement hitch pins.

4. Carefully drive tractor away from implement.
