Lateral Float

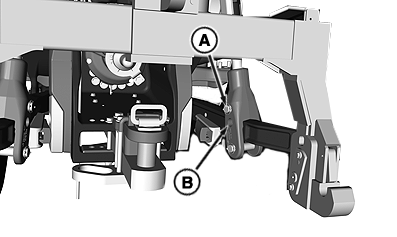

RXA0141373-UN-16JUN14

A - Upper Holes

B - Lower Holes

Placing lateral float pins in upper holes (A) allows either draft link to raise slightly as implement follows ground surface.

Put lateral float pins in lower holes (B) to hold implement rigidly.
