Rear Wheel Weight Use

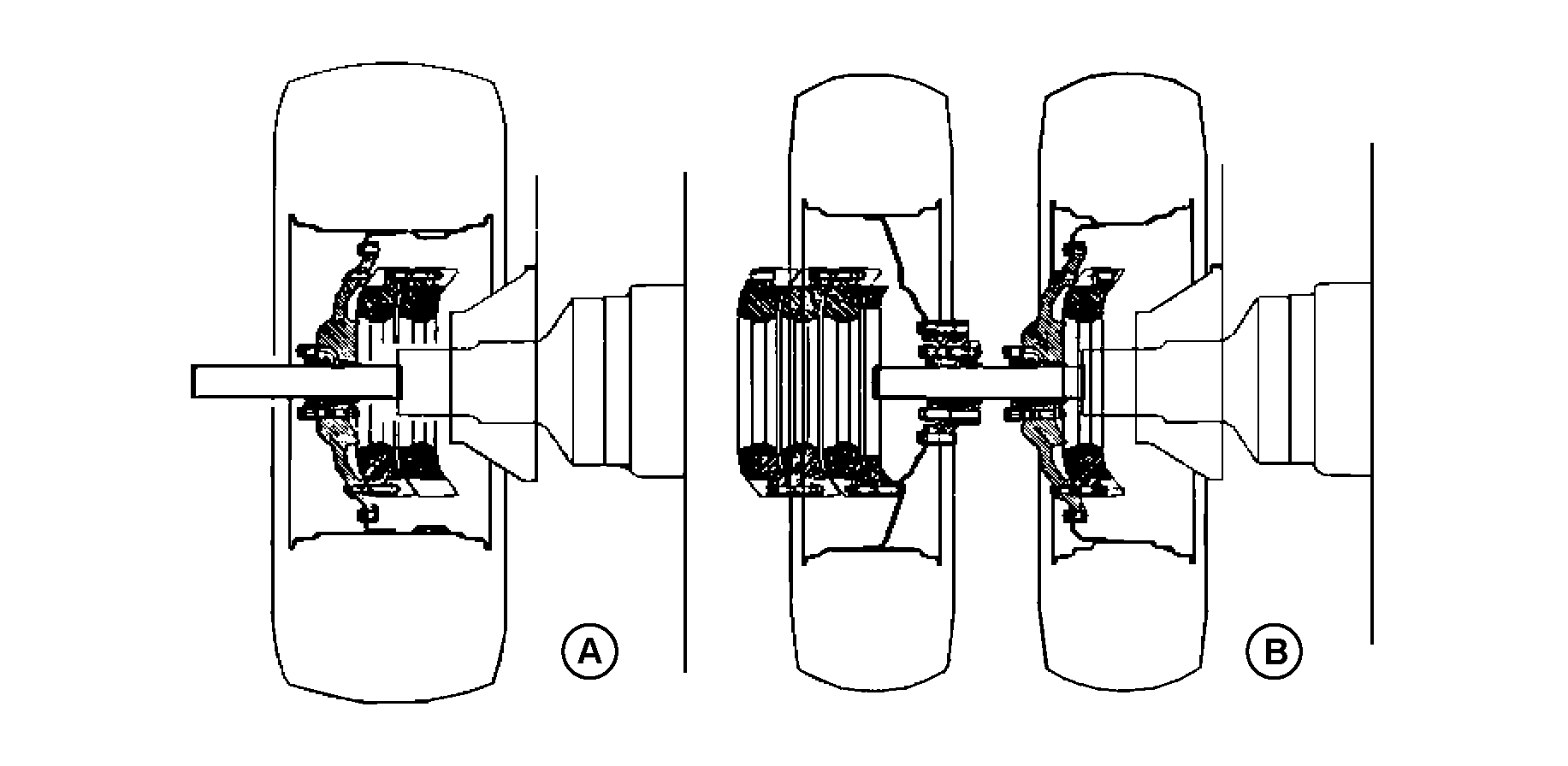

RW26744-UN-22NOV99
A - Single Wheel (110 mm Axle)
B - Dual Wheels (110 and 120 mm Axle)
CAUTION: When installing weights, use appropriate equipment
or see your John Deere™ Dealer.
IMPORTANT: Inside wheel weight must have at least 25 mm (1 in) clearance between weight and tractor components.
Never stack more than 690 kg (1520 lb) of weights together—three 205 kg (452 lb) weights and one 72 kg (159 lb) weight.
|
Wheel |
Type |
Cast |
Steel |
|
|---|---|---|---|---|
|
Weight Location |
Inner Wheel |
Outer Dual Wheel |
||
|
Inside |
Outside |
Outside |
||
|
Wheel Weights kg (lb) |
625 (1378) |
Yes |
— |
— |
|
72 (159) |
Yes |
Yes1 |
Yes2 |
|
|
205 (452) |
Yes |
Yes31 |
Yes32 |
|
RXA0119716-UN-11AUG11

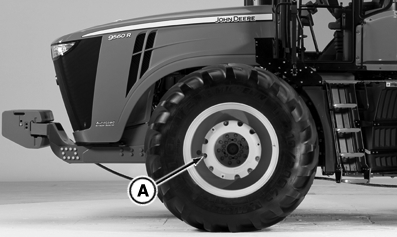

Installing Cast Weights on Wheels
A - Mounting Holes
Install cast weights on wheel.
For additional weights, install cap screws in previous weight. Rotate alternate weight to align cap screws with mounting holes (A).
Tighten cap screws and then retighten after driving approximately 100 m (109 yd).
Retighten cap screws after working 3 hours, 10 hours, and every 250 hours thereafter.
| Item | Measurement | Specification |
| M16 Cap Screw | Torque | 310 N·m (228 lb·ft) |
| M20 Cap Screw | Torque | 610 N·m (450 lb·ft) |
|
John Deere is a trademark of Deere & Company 1 Not compatible with duals. 2 Not compatible with triples. 3 Must be mounted to 72 kg (159 lb) starter weight. |
