Measuring Wheel Slip (Manually)

NOTE: Wheel slip can be easily determined, automatically, with Performance Monitor, if equipped with optional radar unit. (See Controls and Instruments section in this Operator’s Manual.)

Radar will display true ground speed on corner post below 26 km/h (16 mph) and actual wheel speed above 27 km/h (16 mph).

  1. RXA0142586
    RXA0142586-UN-16JUN14

    RXA0142587
    RXA0142587-UN-16JUN14

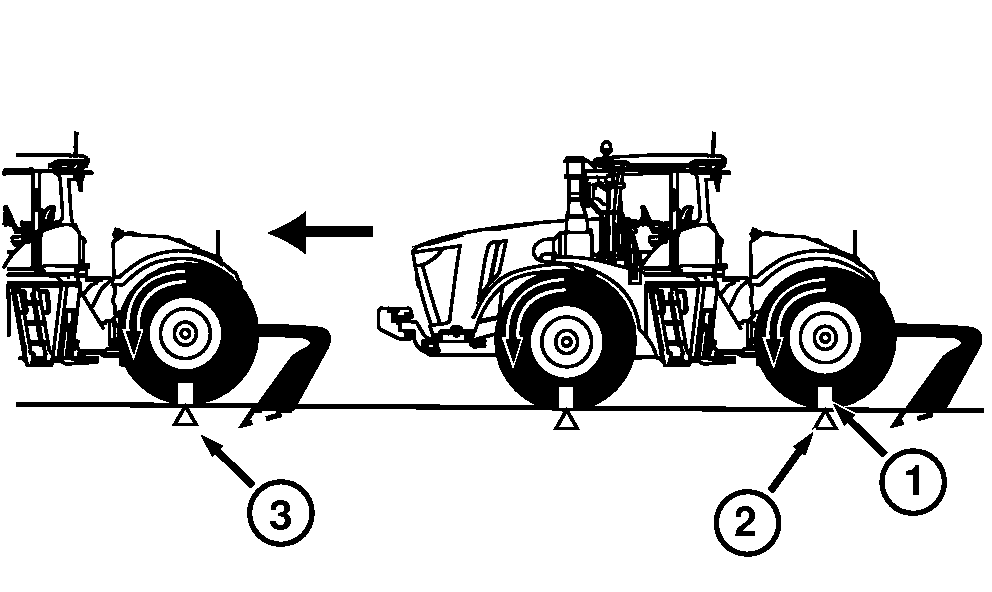

    Mark a tire.


  2. With tractor working, mark starting point on ground.

  3. Follow tractor and mark ground again where tire completes 10 full revolutions.

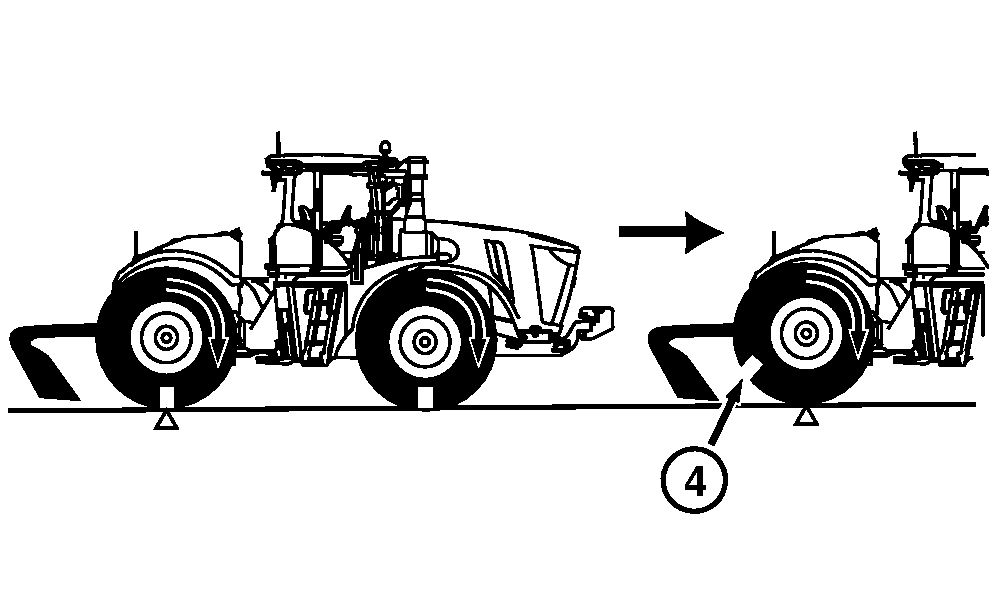

  4. At working speed, go back with implement raised. Count revolutions between same two marks.

  5. Use second count and chart to determine slippage. Remember 8—12 percent is ideal.

    Wheel Slippage Chart

    Wheel Revolutions (Step 4)

    Percent of Slip

    Result

    10

    0

    Remove Ballast

    9-1/2

    5



    9-1/3

    8

    Proper Ballast

    8-3/4

    12



    8

    20

    Add Ballast

    7-1/2

    25



    7

    30



  6. Adjust ballast or load to give 8—12 percent slippage at 4.1 mph (6.6 km/h), without exceeding maximum ballast level.

    NOTE: Available horsepower is greatly reduced when wheel slip drops below eight percent.
