Using Liquid Ballast

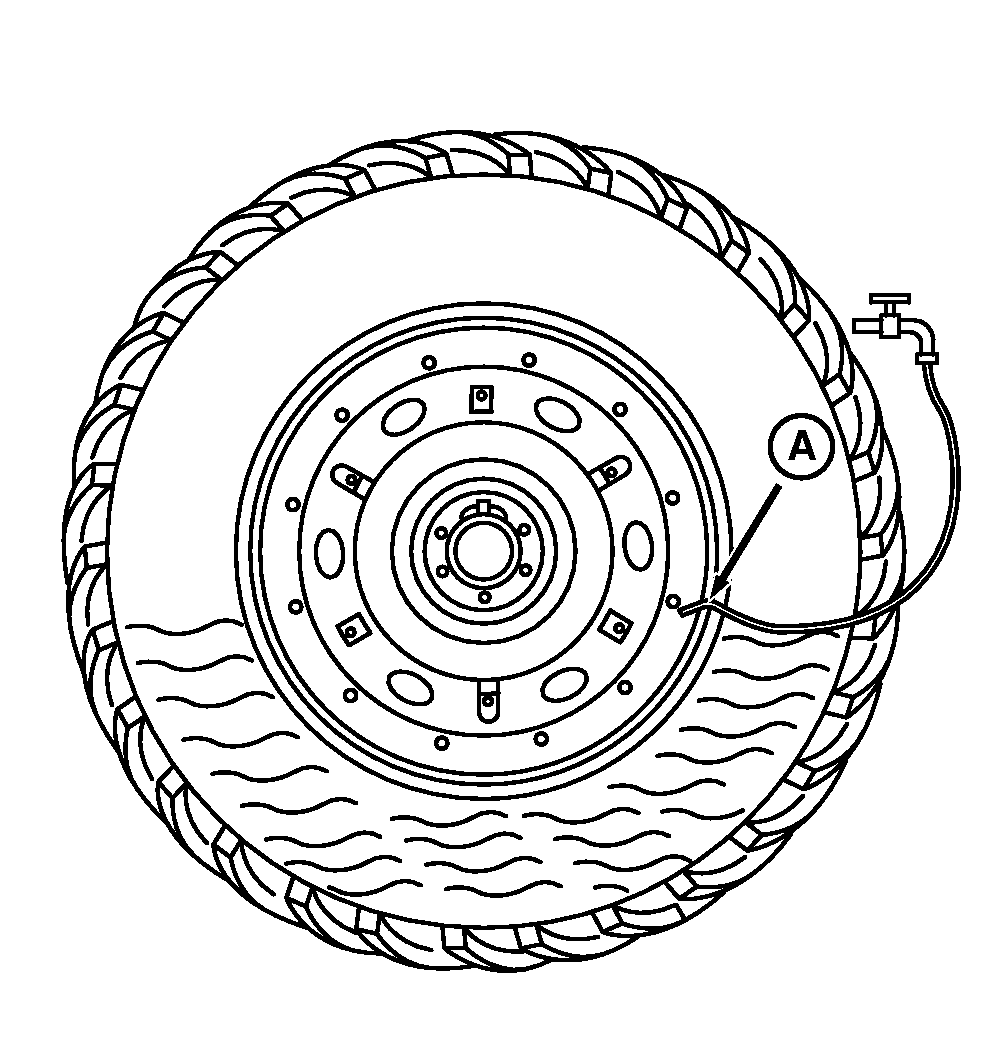

RW71542-UN-05SEP00
A - Valve
Fill tube-type or tubeless tires up to valve level (40 percent full) with valve (A) in 4 o'clock position. Radial and bias tires hold same amount of liquid. When putting liquid in rear tires, make sure all tires on axle have same amount of liquid fill.
|
Liquid Weight per Tire |
||
|---|---|---|
|
Tire Size |
40% Fill |
75% Fill |
|
18.4R46 |
301 kg (664 lb.) |
595 kg (1312 lb.) |
|
480/80R46 |
274 kg (604 lb.) |
548 kg (1208 lb.) |
|
480/80R50 IF480/80R50 |
288 kg (635 lb.) |
575 kg (1268 lb.) |
|
520/85R42 |
325 kg (717 lb.) |
655 kg (1444 lb.) |
|
520/85R46 |
351 kg (774 lb.) |
703 kg (1550 lb.) |
|
20.8R42 |
340 kg (748 lb.) |
682 kg (1504 lb.) |
|
620/70R42 |
390 kg (859 lb.) |
779 kg (1717 lb.) |
|
650/85R38 IF650/85R38 |
561 kg (1237 lb.) |
597 kg (1316 lb.) |
|
710/70R38 IF710/70R38 |
462 kg (1019 lb.) |
924 kg (2037 lb.) |
|
710/70R42 IF710/70R42 |
523 kg (1154 lb.) |
1047 kg (2308 lb.) |
|
800/70R38 IF800/70R38 |
650 kg (1433 lb.) |
1270 kg (2800 lb.) |
|
850/60R38 |
477 kg (1052 lb.) |
954 kg (2103 lb.) |
|
900/50R42 |
532 kg (1173 lb.) |
1065 kg (2348 lb.) |
CAUTION: Avoid possible injury. Installing liquid ballast requires
special equipment and training. See your John Deere™ Dealer
or a tire service store.
IMPORTANT: Liquid ballast is not preferred. Liquid weight greatly increases tire stiffness at lower operating pressures, and greatly reduces ride performance.
Use calcium chloride to prevent water from freezing. A mixture of 3.5 lb. of calcium chloride per gallon (0.42 kg per liter) will not freeze solid above -50°F (-45°C).
IMPORTANT: A maximum liquid fill of 40 percent is recommended for better tractor performance.
NOTE: Use of alcohol as liquid ballast is not recommended.
In areas where freezing is not a problem and water is used as ballast, multiply weight shown in table by 0.8.
|
