Wheel Weight Holding Wrench—JDG10958

RXA0100328-UN-03FEB09

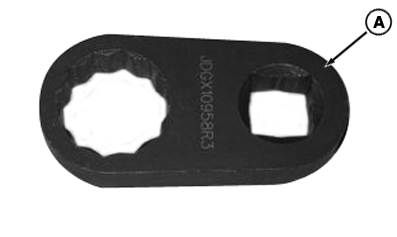

JDG10958 Wheel Weight Holding Wrench

RXA0100329-UN-03FEB09

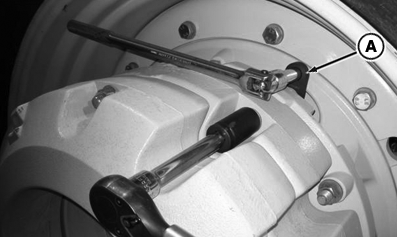

Outer Wheel Weight

RXA0100330-UN-03FEB09

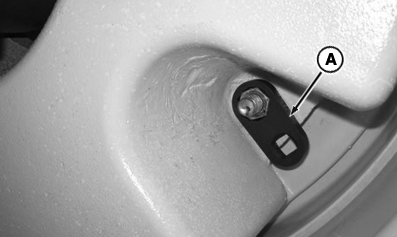

Inner Wheel Weight

A - JDG10958 Wheel Weight Holding Wrench

JDG10958 Holding Wrench can be used when multiple inner and outer wheel weights are stacked on tractor wheel.

Holding Wrench is designed to hold M20 wheel weight cap screws in limited access areas while tightening cap screws to specified torque per Tractor Operator’s Manual.

Wrench is available from your John Deere™ Dealer.

Item	Measurement	Specification
Wheel Weight Cap Screws	Torque	610 N·m (450 lb·ft)
