Using Steering Stops

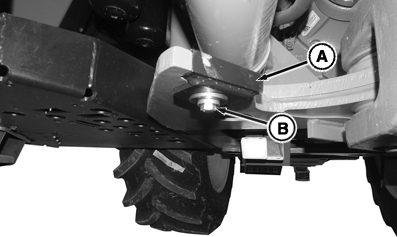

RXA0142711-UN-24JUN14
A - Steering Stop
B - Cap Screw
IMPORTANT: Steering stops (A) must be installed if tractor is equipped with dual tires when outer tire treads are greater than 3343 mm (131.6 in) or if equipped with triple tires.
Check clearance by turning steering wheel to full left-hand side and full right-hand side positions after installing steering stops and adjusting wheel treads.
NOTE: Steering Stops of 36° and 38° are available through your John Deere™ Dealer. Correct steering stops are installed at factory with tire option ordered.
Tighten steering stop retaining cap screw to 90 N·m (66 lb·ft).
|
Tread Spacing Range mm (in) |
||||
|---|---|---|---|---|
|
Tires |
Steering Stop Setting |
Inner Tire |
Outer Tire |
Triple Tire |
|
18.4R46, 480/80R46 Duals |
38° |
1524-1910
|
2969-3348 (117-131.8) |
N/A |
|
18.4R46, 480/80R46 Triples |
38° |
1500 (59) |
2752 (108.4) |
4106 (161.6) |
|
480/80R50 Duals |
36° |
1524-1910
|
2969-3348 (117-131.8) |
N/A |
|
480/80R50 Triples |
36° |
1500 (59) |
2752 (108.4) |
4106 (161.6) |
|
20.8R42, 520/85R42 Duals |
38° |
1600-2062 (63-81) |
2985-2453 (117.6-136) |
N/A |
|
20.8R42, 520/85R42 Triples |
38° |
1600 (63) |
2987 (117.6) |
4374 (172) |
|
520/85R46 Duals |
36° |
1600-2062 (63-81) |
2985-2453 (117.6-136) |
N/A |
|
520/85R46 Triples |
36° |
1600 (63) |
2987 (117.6) |
4374 (172) |
|
620/70R42 Duals |
38° |
1689-2062 (66.5-81) |
3241-3614 (127.6-142) |
N/A |
|
620/70R46 Duals |
36° |
1689-2062 (66.5-81) |
3241-3614 (127.6-142) |
N/A |
|
650/85R38 Duals |
36° |
1722-1966 (67.8-77.4) |
3372-3648 (132.8-143.6) |
N/A |
|
710/70R38 Duals |
38° |
1783-1935 (70-76) |
3472-3625 (137-143) |
N/A |
|
710/70R42 Duals |
36° |
1783-1935 (70-76) |
3472-3625 (137-143) |
N/A |
|
800/70R38 Duals |
36° |
1876-2188 (74-86) |
3763-4075 (148-160) |
N/A |
|
John Deere is a trademark of Deere & Company |
TO84419,0000150-19-20160902 |
