Fill Fuel Tank

CAUTION:

TS202-UN-23AUG88

RXA0152652-UN-05JUL16

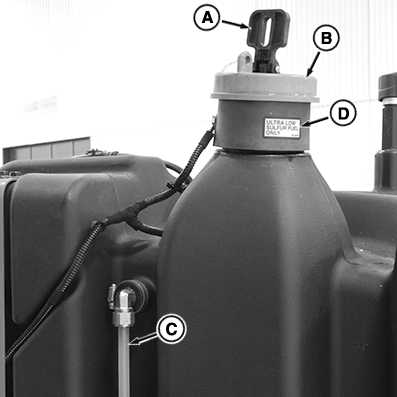

A - Fuel Cap Lock lever

B - Fuel Cap

C - Sight Tube

D - Ultra Low Sulfur Fuel Decal

• Always stop engine when refueling because fuel is highly flammable.
• Do not refuel while smoking or when near open flame or sparks.
• Handle fuel with care. Always clean up spilled fuel.
• Fill fuel tank outdoors.
• Prevent fires by keeping machine clean of accumulated trash, grease, and debris.

CAUTION: Handle fuel with care: It is highly flammable. Do not refuel the machine while smoking or when near open flame or sparks.

Always stop engine before refueling machine. Fill fuel tank outdoors.

Prevent fires by keeping machine clean of accumulated trash, grease, and debris. Always clean up spilled fuel.

IMPORTANT: To prevent damage to tractor fuel injection system and other components, never put Diesel Exhaust Fluid (DEF) into fuel tank or fuel system.

IMPORTANT: Use only ultra low sulfur fuel as prescribed by decal (D).

To confirm which engine your tractor is equipped with, see Record Engine Serial Number in Identification Numbers section of this Operator's Manual.

NOTE: If engine requires Diesel Exhaust Fluid (DEF) to operate, it is suggested that DEF tank is refilled each time machine is refueled to assure that sufficient DEF is available. See Filling DEF Tank in this section of this Operator’s Manual

IMPORTANT: Each fuel tank is vented through filter at top of each tank. See LUBRICATION AND MAINTENANCE—1500 HOUR SERVICE section.

For machines with Final Tier 4/Stage IV engines, use only ultra low sulfur fuel as specified on decal (D) in this section of this Operator’s Manual. For other machines, see Diesel Fuel in this section of this Operator’s Manual.

Raise fuel cap lock lever (A) and rotate counterclockwise.

Remove fuel cap (B) and fill fuel tanks at end of each day. Filling tanks at end of day prevents condensation in tanks as moist air cools.

NOTE: When digital display fuel gauge flashes, approximately 20 to 25 gallons of fuel remains.

Approximately 132 L (35 gal.) of fuel remains when the fuel level is at the bottom of sight tube (C).

RXA0152655-UN-05JUL16

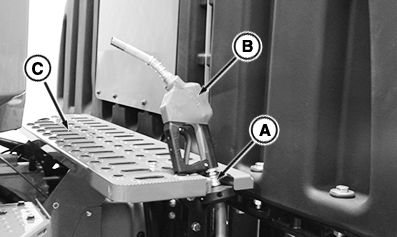

A - Fuel Nozzle Holder

B - Fuel Nozzle

C - Platform

When filling fuel tank, place fuel nozzle (B) in fuel nozzle holder (A) before climbing steps.

Stand on platform (C), retrieve fuel nozzle and fill fuel tank.

Place fuel nozzle back in fuel nozzle holder before climbing down off of platform.
