Clean Radiator, Coolers, and Air Conditioning Condenser—9.0 and 13.5 L Engines

RXA0141833
RXA0141833-UN-02JUN14

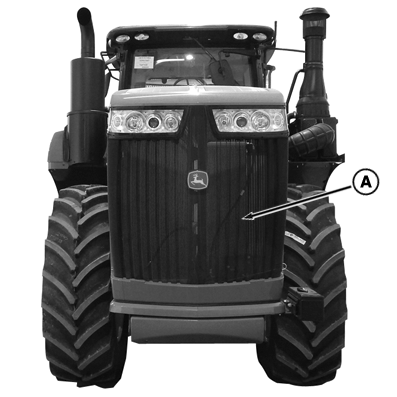

A - Screen

Turn engine OFF.

Clean grille screen (A) using a brush or compressed air.

Clean trash from engine compartment shields.

IMPORTANT:

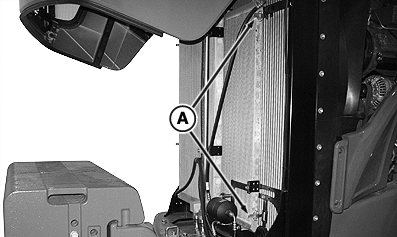

RXA0118336
RXA0118336-UN-23JUN11

RXA0118338
RXA0118338-UN-23JUN11

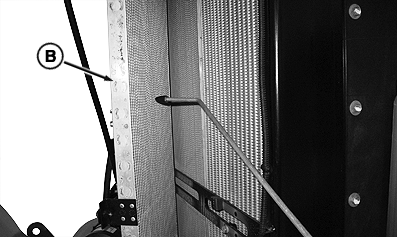

A/C Condenser

RXA0118331
RXA0118331-UN-24JUN11

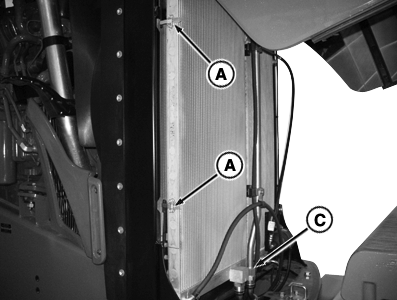

Oil-Fuel Cooler

RXA0118333
RXA0118333-UN-23JUN11

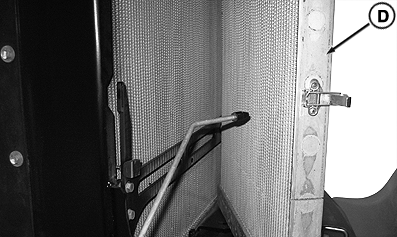

Oil-Fuel Cooler

A - Retaining Clips

B - Air Conditioning Condenser

C - Steel Line Fitting

D - Oil-Fuel Cooler

Use caution when oil-fuel cooler is opened. Steel cooler line may contact air conditioner line when cooler is at a 30° angle. Steel line fitting (C) does not rotate and can cause damage to the line fitting if extended too far.

Release hood latch and raise hood.

Release air conditioning condenser retaining clips (A) to swing condenser forward for better cleaning access.

Use compressed air to clean air conditioning condenser (B) using compressed air.

Release oil-fuel cooler retaining clips (A) to swing cooler (D) forward.

Use compressed air to clean radiator. Straighten any bent radiator fins.

Close air conditioning condenser and oil-fuel cooler and lock the retaining clips.

Gently lower hood and firmly close until hood latch is locked.
